High brightness 13.3 Inch PCAP HDMI TFT LCD Display 1920x1080 Dots 1000nits EDP Interface

Name: High brightness 133 Inch PCAP HDMI TFT LCD Display 1920x1080 Dots 1000nits EDP Interface
Brand: SAEF
Price: 1 USD

Wholesale High brightness 13.3 Inch PCAP HDMI TFT LCD Display 1920x1080 Dots 1000nits EDP Interface from china suppliers

Brand Name : SAEF

Model Number : SFTO1330XC-7119A10-CT

Certification : ISO9001 / ISO14000

Place of Origin : ShenZhen / China

MOQ : 3 pcs

Price : Negotiable.

Payment Terms : L/C, T/T, Western Union, Paypal

Supply Ability : 3000K pcs per month

Delivery Time : 3-5 weeks

Packaging Details : Standard Exportation Package

Keywords : 13.3 inch Capacitive touchscreen TFT Module

Resolution : 1920*1080 pixels

LCD interface : EDP

Surface Luminance : 1000 cd/m2

Touch screen : CTP (Projective Capacitive Touch Screen)

CTP Interface : USB

LCD Size : 305.19 x 177.69 x 2.58 mm (w/o Touch)

LCD with Touch : 307.55 x 185.62 x 4.58 mm (with Touch)

Active Area : 293.76 x 165.24 mm

Operating Temp. : -10℃ to +60℃

Storage Temp. : -20℃ to +60℃

Display type : IPS full viewing angles

Surface Treatment : Haze 25%, 3H

Contrast Ratio : 1000

Display Color : 16.7 M

LED lifetime : 30,000 hours

Certificate : ISO9001:2015 / ISO1400:2015

Compliance : REACH & RoHS Compliant

Contact Now

** Datasheet Download **
SFTO1330XC-7119A10CT Specification.pdf

About this item SFTO1330XC-7119A10CT

Introducing the High Brightness 13.3 Inch PCAP HDMI TFT LCD Display, a top-tier display solution designed to meet the demands of various professional applications. With its stunning 1920x1080 pixel resolution and remarkable 1000 nits brightness, this screen ensures exceptional clarity and visibility, even in the brightest environments.

Key Features:

High Brightness of 1000 nits: Experience outstanding visibility under direct sunlight, making it ideal for outdoor applications or bright indoor settings.
13.3 Inch Size: A compact form factor that provides ample display area without compromising on portability, perfect for embedded systems, kiosks, and handheld devices.
PCAP Touch Technology: Enjoy a responsive and intuitive user interface with projected capacitive (PCAP) touch technology, allowing for multi-touch capabilities and improved interaction.
Full HD 1920x1080 Resolution: Crisp and sharp images with vibrant colors, enhancing the overall user experience for presentations, applications, and multimedia content.
EDP Interface: Ensures seamless integration with a variety of devices and systems, allowing for easy setup and flexibility in design.
Durable Design: Engineered to withstand demanding environments with robust construction that ensures longevity and reliability.

Applications:

This versatile display is perfect for a wide range of applications including:

Medical devices and equipment
Industrial control systems
Outdoor kiosks and advertising displays
Automotive infotainment systems
Learning and training tools

Conclusion:

Upgrade your visual experience with the High Brightness 13.3 Inch PCAP HDMI TFT LCD Display. With its advanced features and superior brightness, this display is built to deliver outstanding performance and reliability in any environment. Whether you're developing a new product or enhancing an existing system, this display is the ideal choice for your needs.

For more information or to request a quote, please contact us!

Features

Characteristics	Size	13.3 inch
	Resolution	1920(horizontal)x1080(Vertical)
	Interface	eDP1.2/2.7Gbps/2lane
	Connect type	20455-030E-76 (I-PEX)
	Color Depth	16.7M
	Technology type	A-si
	Display Spec. Pixel pitch (mm)	0.153 x 0.153
	Pixel Configuration	R.G.B. Vertical Stripe
	Display Mode	Normally Black
	TP Driver IC	NC
	LCD Surface Treatment	Anti-glare coating:(3H)
	Viewing Direction	U/D/L/R:85/85/85/85
	Contrast Ratio	1000(TYP.)
	Color gamut	72%
	Luminance(cd/m2)	1000(TYP.)
	Consumption of Power	LCD:1.8(W)(Max.)(White Pattern) BL:see details below
	LED Numbers	50 LEDS
	Weight (g)	-
Mechanical	Outline (W x H x D) (mm)	307.55 x 185.62 x 4.58 mm
	TP Lens view area(mm)	-
	LCM (W x H x D) (mm)	305.19 x 177.69 x 2.58 mm
	LCD Active Area(mm)	293.76 x 165.24
	With /Without TSP	With TSP

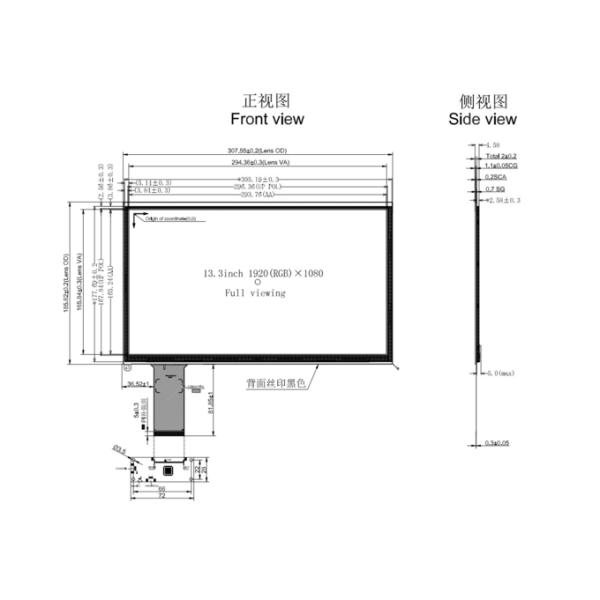

Product Drawing

Display Pin Definition

Terminal	Symbol	Functions
1	NC	No connection
2	H-GND	Ground
3	LAN1 N	Complement Signal Link _Lane1
4	LAN1 P	True Signal Link _Lane1
5	H-GND	Ground
6	LAN0_N	Complement Signal Link _Lane0
7	LAN0_P	True Signal Link _Lane0
8	H-GND
9	AUXP	True Signal Link _Auxiliry Channel
10	AUXN
11	H-GND	Ground
12	LCD_VCC	Power Supply, 3.3V (typ.)
13	LCD_VCC	Power Supply, 3.3V (typ.)
14	BIST	Panel self test enable
15	H_GND	Ground
16	H_GND	Ground
17	HPD	HPD(Hot Plug Detect) Signal Pin
18	BL_GND	High Speed Ground
19	BL_GND	High Speed Ground
20	BL_GND	High Speed Ground
21	BL_GND	High Speed Ground
22	BL EN	Backlight on/off Control pin
23	BL PWM	Back light PWM Dimming
24	NC	No connection
25	NC	No connection
26	BL PWR	Backlight power
27	BL PWR	Backlight power
28	BL PWR	Backlight power
29	BL PWR	Backlight power
30	NC	No connection

Electrical Specifications

Parameter		Min.	Typ.	Max.	Unit	Remarks
Surface Brighness		800	1000		cd/m2
Power Supply Voltage	VDD	3.0	3.3		V	Note 1
Permissible Input Ripple Voltage	VRF	-	-	100	mV	At VDD = 3.3V
Power Supply Current	IDD	-		-	mA	Note1
Differential Input Voltage	VID		-	1320	mV
Power Consumption			0.9		W	Note1
		-	4	-	W	Note2
		-	4.9	-	W

PCAB USB Pin Definition
1 VCC
2 USB-
3 USB+
4 GND

Product Image
